Michael Christie

The Village Generator deals with creating an envioment for the player to play around with. From the vary begining I wanted to include "disticts" which would control the type of buildings that would be created. This would then mean I could create an area for monsters or enemys to spawn from, or an area for the player to interact with NPC's like shopkeepers or gaurds. By the end of the project there we're 3 districts overall, a kingdom district which would be a place that gaurds would spawn from or walk to after their patrols, a housing area where NPC's would be coming and going from, and a ruins area for enemies to spawn from. This could then be used closely with the Quest Generator to help drive the narrative forward.

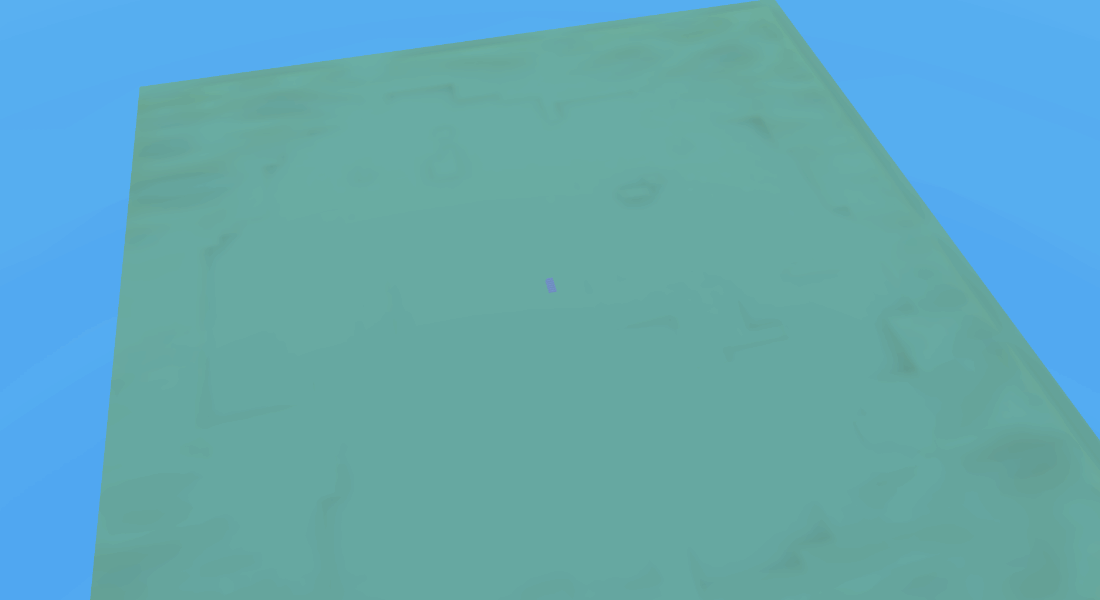

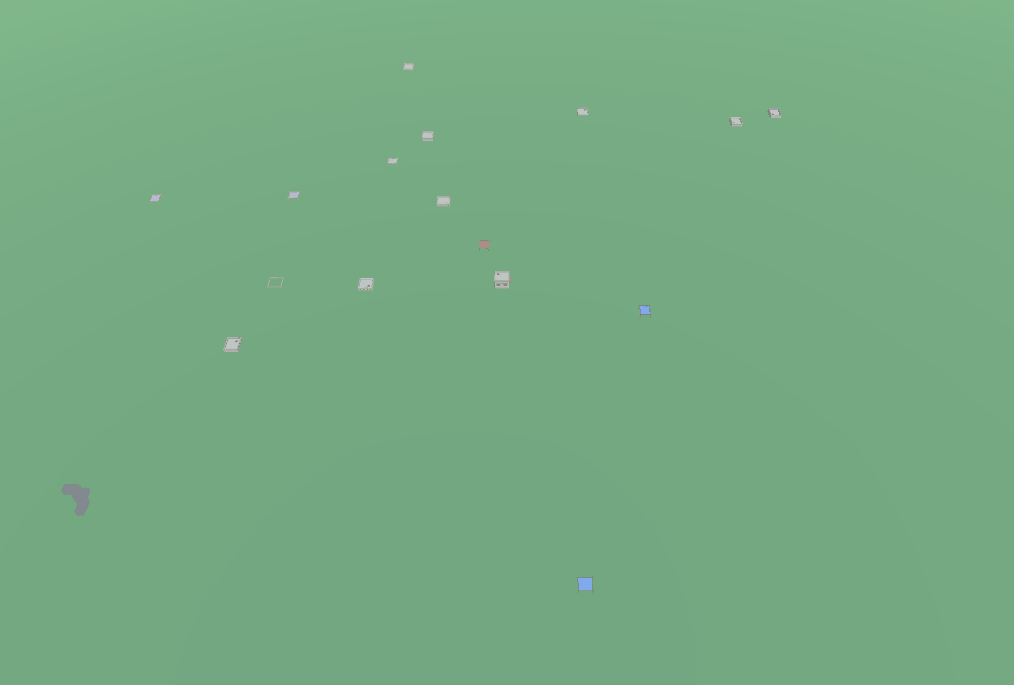

The first thing I worked on was defining space for buildings, parths and empty space. I used a grid and with the center always being empty. I then shuffled all unsearched tiles, selecting them and declaring them as building space or empty space, using a flood fill algorithm to check whether the closed tile would affect paths or creating an unreachable empty space. After declaring space for buildings and empty space, I created a building area which is formed from connected building spaces. From this I could then mark any empty cells that are surround a building area as a path.

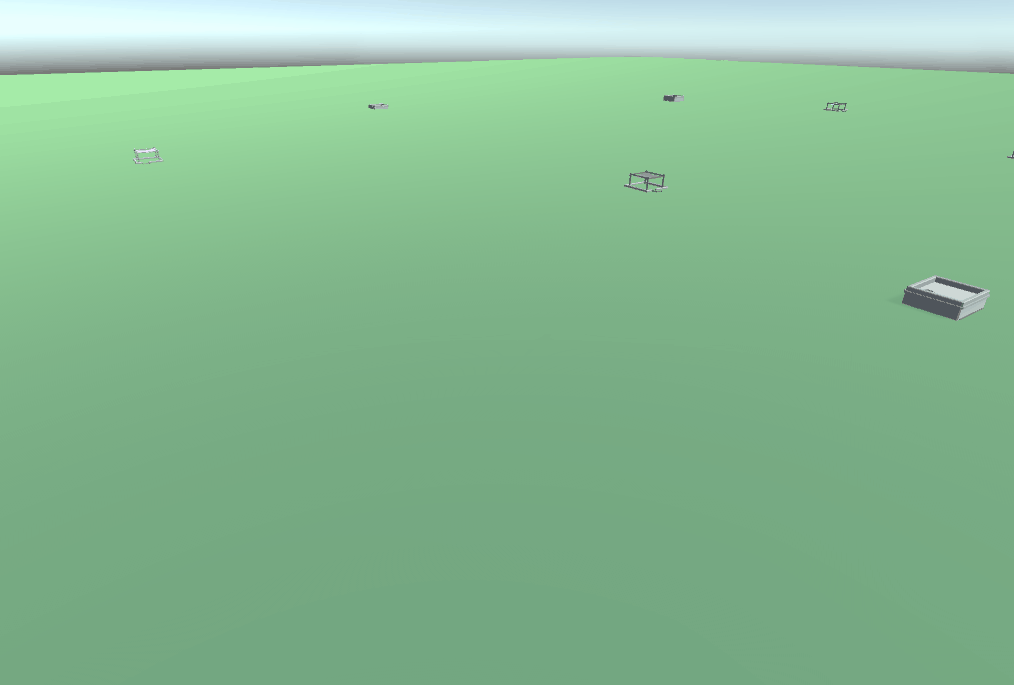

With the building areas, I then used WFC to fit the buildings together to form a city block. Each building has a defined size which can then rotated around to fit the rotation of the path which forms the sides of the city block. Each district has its only list of buildings that spawn in that area to help organize which buildings can spawn in a specific area. Using this system, I would be able to add more disticts easily. Each building can also be constained to its possition, limiting buildings to being able to spawn in the corners or sides of each city block. This meant that I could fit less blocky shaped buildings into the corners to improve the looks and make it feel less squared.

After Generating buildings, I wanted add depth into the evnioment around the buildings, so added in some simple layered noise to create some hills and bumps, increasing the intensity of the noise at the edges of the city to make the city feel nested inside a valley, keeping the player inside the city. I also spawned varients of trees on the terrain to break up the line of sight for the player.

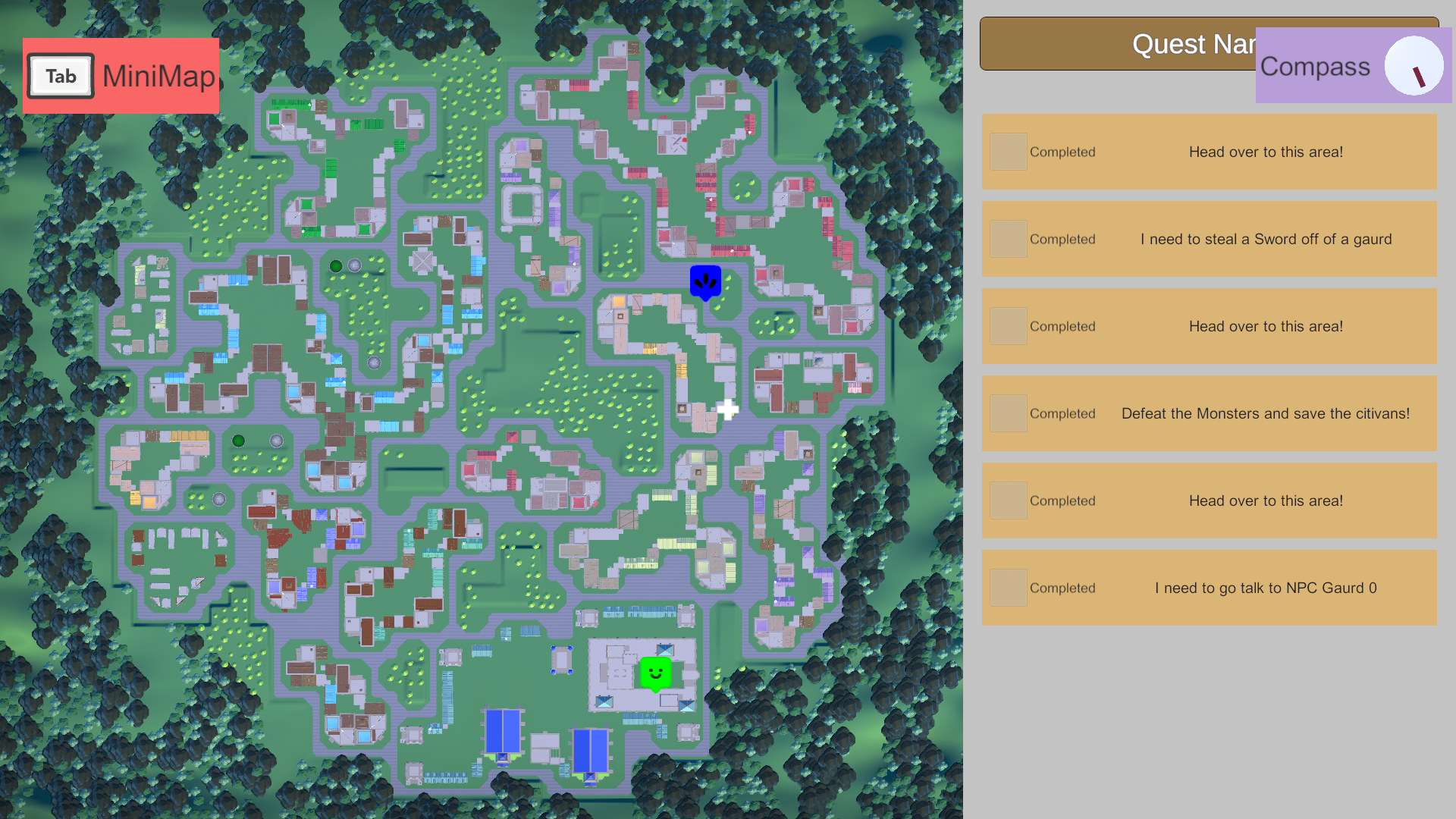

The Quest Generator uses "Motives" which define the purpose or reasoning for the quest in the game world. These Motives can be, for example, defend the village, collect x item for person y or talking to several villagers. For this project I focused more around Motives that would result in an action moment for the player to play through however is open enough to add other Motives for other quest types. The quest is set up as a node tree which is then used to spatial set up the quest in the game envioment. This creates "Islands and Bridges", where each Island is an important part of the quest, such as where you fight monsters, and a Bridge is the area inbetween which connects two quest parts together. This means that when generating the quest first, I can use the node tree to generate districts and areas for the quest to play out in, and when generating the envioment first, I can use the roads as a way to navigate to new areas where quest actions can be played out in.

The current implementation of this quest system lacks on generating a context to fit the quest in. The quest is a list of actions for the player to complete in its current state, which is then displayer to the player such as steal this item for player x, or kill these enemies, however implementing a sentence generator, or even a phrase picker which would be weighted against the current game state and the action, could help bring a better context for the quest in the game world.

Overall I'm really happy with the project as a whole, but the city generator was by far the most fun part to have been working on. Its not perfect and lacks detail to really bring the whole city to life, like objects specific to certian houses to make them more unique. However, with a lack of assets to really use, I'm proud of what I made. This was my first fully PCG game, I had experiemented and played around with some PCG features like track generation, and generating houses, but never to the extent where I was creating a game which required generated content. There's a lot I've learnt from this experiance, as well as things I know I need to do to improve the current solution. This was also the first project that I had really undertaken that required me to spend more than 3 months programming, and so planning was really important to help complete the project before the due date. I was setting myself weekly and daily goals to hit, which worked amazingly well to keep motivated and pushing forward with the project.

There are some issues with the performance of the city generator that I would like to fix during another itteration of the project, which revolve around the scalability of the city. In the current implementation, expanding the city to be any larger than it currently is would cause the game to crash. A protential fix to this is to actually chunk the city, in its current form everything is created and stored in a city manager, but offloading some of the data and functionality in a more chunk oriented approach might help the performance and scalability of the generator, with having chunks only needing to interact with its surrounding chunks rather then the whole city like it is currently doing. Another problem that I'd address, which was stated in the Quest Generator section revolves around the quest narrative. It would of been nice to be able to spend more time on this, implementing a sentence or phrase picker just to polish up the quests, making it less direct and more narrative driven which I think would improve the player experiance.

With all the new improvements that could be added, I feel like the direction of this project if it was to be remade would be more in the direction of generating a city based upon real life data for road layouts, then procedurally generating entire buildings in the empty space, similiar to what was done for the Marvel: Spiderman PS4 game. The quest system would become a real time event system, picking motives for NPC's to use to create an event for the player to interact with, but would be similar in terms of functionality of defining goals for the player to complete and assigning them into a game world.
